FlowWorks supports the creation of customized display screens which summarize the status of your network or facility at a glance. These screens can be accessed from anywhere on the Internet, and you choose if you want them protected behind the login system or if you want them to be publicly accessible. The use of display screens is included as part of your subscription, however a one-time initial fee is charged to create the screen. Check out the video below for a tour of some example screens:
Custom Display Screens
Shown below are some examples of on-line display screens that are included in your online monthly subscription fee. The creations of the screens are subject to a one time set up fee.
These screens can display any of the stations or measurements you have in FlowWorks. The backdrop is supplied either by the user or we work with together with the user to create a suitable backdrop.

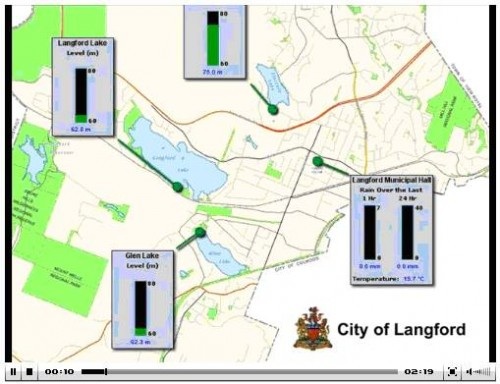

In this example lake levels at various locations are shown on the same screen as well as the rainfall for the past hour and 24 hours along with temperature from a weather station. The screen can be made publicly available or made password protected.
- Lake Level Status Screen

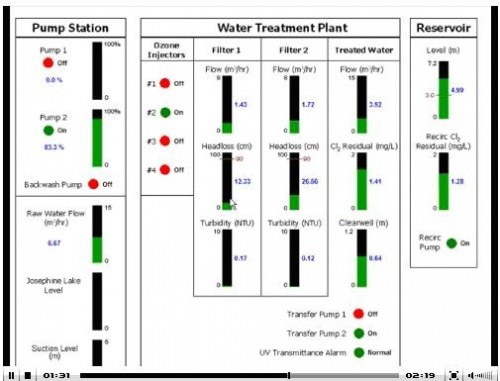

The next example shows more parameters within a single facility which in this case is a water treatment plant. Various pump flows, status reservoir levels and water quality parameters are all recorded and transmitted into FlowWorks every 5 minutes. The statuses of the pumps are indicated by the colors. Alarms points can also be set up with the color changing accordingly when a condition is exceeded.
- Water Treatment Plant Status Screen

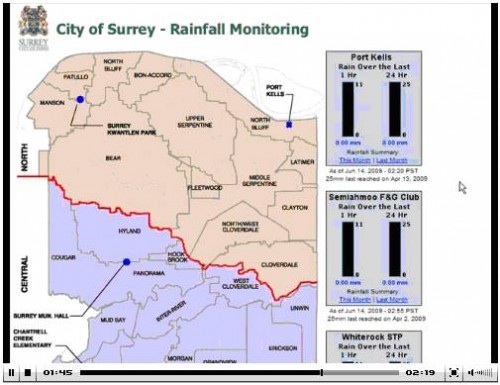

The next summary screen is an example of a rainfall summary screen. The bars indicate the amount of rainfall that has fallen over the previous hour and previous 24 hours and they are programmed to turn red when a significant event occurs.
- Rainfall Summary Screen

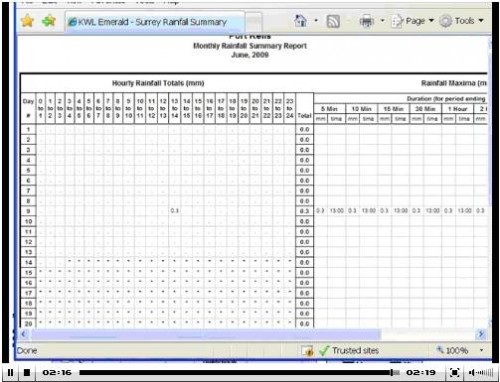

You can click on a link under the bar ‘This Month’ or ‘Last Month’ which will open up a rainfall summary table for that particular rainfall station.
- Rainfall Status Screen and Rainfall Summary Table
- Rainfall Summary Table
